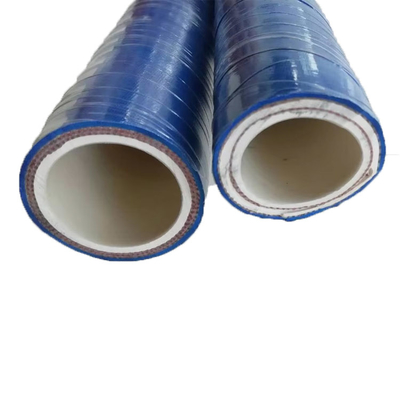

Food Grade Hose Tasteless Highly Flexible Kink Resistant Easy Cleaning
| MOQ: | 1 |
| Price: | $60-$219 |
| Standard Packaging: | Wooden Pallets, Wooden Box |
| Delivery Period: | 5-7 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 1370 Pcs Per Month |
Food Grade Hose Tasteless Highly Flexible Kink Resistant Easy Cleaning
In dairy and beverage processing, sanitary hose pipes are critical for transferring products like milk, cream, syrup, and concentrates. These hoses feature ultra-smooth, non-stick FDA-grade silicone tubes that prevent bacterial adhesion and ensure no flavor contamination. They are designed for high-flow efficiency, excellent flex life, and can withstand repeated clean-in-place (CIP) sterilization with high-temperature steam.
( Case: A craft brewery in Oregon was struggling with flavor contamination and inflexible hoses that hampered cellar operations. By adopting flexible, high-purity silicone hoses with steam-proof certification, they eliminated off-flavors between batches. The improved flexibility allowed for easier tank connections in tight spaces, streamlining their transfer process and guaranteeing the pure, intended taste of their beers. )
Specifications
| Product Name | Specification Category | Parameter | Details / Range | Notes |
|---|---|---|---|---|
| Food Hose Pipe | Physical Dimensions | Inner Diameter (ID) | 1/4 inch (6.4 mm) to 12 inches (304.8 mm) | Custom sizes available |
| Standard Lengths | 10m, 15m, 20m, 30m (33ft, 50ft, 66ft, 100ft) | Custom lengths available | ||
| Performance | Working Pressure | Up to 25 bar (360 psi) | Varies with diameter and reinforcement | |
| Vacuum Rating | Up to 95% (-28.5 inHg) | For suction hoses with wire helix reinforcement only | ||
| Temperature Range | -40°C to +180°C (-40°F to +356°F) | Short-term peaks up to +200°C possible | ||
| Bend Radius | Excellent (Typically 4 × Diameter ratio) | Provides excellent flexibility | ||
| Materials Compliance | Inner Tube Material | Platinum Silicone, EPDM, NBR, PU | FDA 21 CFR 177.2600 & EU 10/2011 compliant | |
| Reinforcement | High-tensile synthetic textile or stainless steel wire helix | Wire helix for suction applications | ||
| Cover | Abrasion-resistant synthetic rubber or polyurethane (Blue, White, Black) | Weather and ozone resistant | ||
| Certifications | FDA 21 CFR 177.2600, EU 10/2011, NSF/ANSI 51 | Complies with international food safety standards | ||
| Applications | Compatible Media | Beer, dairy, juices, oils, powders, hot water, mild chemicals | Material selection depends on specific media | |
| Industries Served | Dairy, Beverage, Brewing, Food Processing, Pharmaceutical, Marine | Suitable for wide range of applications |
|
Food Suction & Delivery Hose 150PSI |
|||||||||
| Item Code | I.D | O.D | W.P | B.P | Length | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft | |
| HMFHP-19 | 3/4" | 19.1 | 31 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-25 | 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-32 | 1-1/4" | 31.8 | 44 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-38 | 1-1/2" | 38.1 | 51 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-50 | 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-64 | 2-1/2" | 63.5 | 80 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-76 | 3" | 76.2 | 92 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-89 | 3-1/2" | 89 | 105 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-102 | 4" | 101.6 | 120 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-125 | 5" | 125 | 145 | 10 | 150 | 30 | 450 | 30.5 | 100 |
| HMFHP-152 | 6" | 152 | 172 | 10 | 150 | 30 | 450 | 30.5 | 100 |
Product Features
Food Grade Materials
Made from FDA and EU-compliant silicone, fully non-toxic, safe for direct contact with all food and beverage products. Ensures compliance with hygiene standards and prevents contamination.
Smooth Inner Surface
Ultra-smooth, non-stick inner lining prevents residue buildup and bacterial adhesion. Reduces cleaning time, minimizes the risk of microbial contamination, and maintains product purity.
High Flexibility
Flexible design allows easy routing in tight spaces, effortless connection to tanks and equipment, and smooth handling in automated processing lines. Prevents kinking or damage during installation.
Heat Chemical Resistance
Withstands repeated CIP sterilization, hot water, and steam. Resistant to food-grade acids and oils, maintaining structural integrity and long-term performance in demanding environments.
Applications
Marine Use
Shipboard kitchens, catering systems, freshwater supply lines
Food Beverage Processing
Breweries, dairy plants, juice production, syrup transfer
Transport Distribution
Tanker trucks, bottling facilities, storage operations
Why Choose Hongruntong Marine?
Flexible Manufacturing
Customizable hoses in diameter, length, and reinforcement to suit different production requirements. Adapts quickly to changing market and client needs.
Proven Reputation
Established credibility with food and beverage clients worldwide. Hoses trusted for hygiene, durability, and performance in critical processing environments.
Focus on Innovation
Commitment to continuous improvement in materials, design, and production methods to stay ahead of industry trends and meet evolving hygiene standards.
FAQ
1. Q: Are you a trading company or manufacturer?
A: We are a factory.
2. Q: How long is your delivery time?
A: Generally 5-10 days if in stock, 15-20 days if not, depending on order quantity.
3. Q: Do you provide samples? Are they free?
A: Yes, samples are free, but freight is not included.
4. Q: What are your payment terms?
A: Payment ≤ 3,000 USD: 100% in advance; Payment ≥ 3,000 USD: 30% T/T in advance, balance before shipment; Payment ≥ 20,000 USD: L/C at sight accepted.
