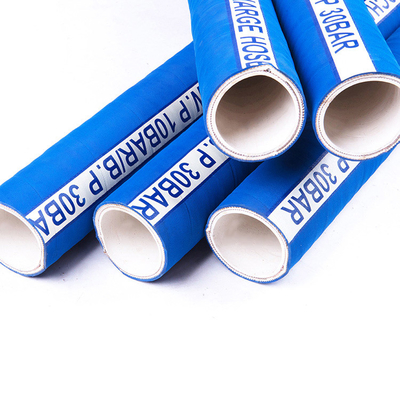

Corrosion Resistant Hose UV Resistant Flexible Strong Long Lasting Use
| MOQ: | 1 |
| Price: | $20-$860 |
| Standard Packaging: | Wooden Pallets, Wooden Box |
| Delivery Period: | 5-7 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 2070 Pcs Per Month |
Corrosion Resistant Hose UV Resistant Flexible Strong Long Lasting Use
Description
Food hoses used outdoors face unique challenges such as UV exposure, varying weather conditions, and physical stress. UV-resistant food hoses are designed with a special cover to withstand long-term exposure to sunlight while maintaining flexibility and safety for food transfer.
( Case: A juice distribution company in Brazil operated tanker unloading outdoors under direct sunlight. Standard hoses deteriorated quickly. After switching to UV-resistant food hoses, hose life doubled, reducing replacement frequency and ensuring reliable operations. )
Specifications
| Product Name | Specification Category | Parameter | Details / Range | Notes |
|---|---|---|---|---|
| Food Hose Pipe | Physical Dimensions | Inner Diameter (ID) | 1/4 inch (6.4 mm) to 12 inches (304.8 mm) | Custom sizes available |
| Standard Lengths | 10m, 15m, 20m, 30m (33ft, 50ft, 66ft, 100ft) | Custom lengths available | ||
| Performance | Working Pressure | Up to 25 bar (360 psi) | Varies with diameter and reinforcement | |
| Vacuum Rating | Up to 95% (-28.5 inHg) | For suction hoses with wire helix reinforcement only | ||
| Temperature Range | -40°C to +180°C (-40°F to +356°F) | Short-term peaks up to +200°C possible | ||
| Bend Radius | Excellent (Typically 4 × Diameter ratio) | Provides excellent flexibility | ||
| Materials Compliance | Inner Tube Material | Platinum Silicone, EPDM, NBR, PU | FDA 21 CFR 177.2600 & EU 10/2011 compliant | |
| Reinforcement | High-tensile synthetic textile or stainless steel wire helix | Wire helix for suction applications | ||
| Cover | Abrasion-resistant synthetic rubber or polyurethane (Blue, White, Black) | Weather and ozone resistant | ||
| Certifications | FDA 21 CFR 177.2600, EU 10/2011, NSF/ANSI 51 | Complies with international food safety standards | ||
| Applications | Compatible Media | Beer, dairy, juices, oils, powders, hot water, mild chemicals | Material selection depends on specific media | |
| Industries Served | Dairy, Beverage, Brewing, Food Processing, Pharmaceutical, Marine | Suitable for wide range of applications |
|
Food Suction & Delivery Hose 150PSI |
|||||||||
| Item Code | I.D | O.D | W.P | B.P | Length | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft | |
| HMFHP-19 | 3/4" | 19.1 | 31 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-25 | 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-32 | 1-1/4" | 31.8 | 44 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-38 | 1-1/2" | 38.1 | 51 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-50 | 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-64 | 2-1/2" | 63.5 | 80 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-76 | 3" | 76.2 | 92 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-89 | 3-1/2" | 89 | 105 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-102 | 4" | 101.6 | 120 | 10 | 150 | 30 | 450 | 61 | 200 |
| HMFHP-125 | 5" | 125 | 145 | 10 | 150 | 30 | 450 | 30.5 | 100 |
| HMFHP-152 | 6" | 152 | 172 | 10 | 150 | 30 | 450 | 30.5 | 100 |
Product Features
UV Resistant Outer Layer
Specially formulated to resist sunlight and weather, extending hose life in outdoor conditions.
Food Safe Inner Tube
FDA-compliant non-toxic inner layer ensures safety for juices, syrups, and milk transfer.
Flexible Strong Design
Maintains bendability while resisting kinking, making it suitable for frequent outdoor handling.
Corrosion Chemical Resistance
Resistant to cleaning chemicals and mild acids, ensuring performance even after repeated sanitation.
Applications
Outdoor Food Transport
Tanker unloading in open areas
Beverage Industry
Outdoor juice and beer distribution lines
Marine
Deck kitchens, shipboard catering systems exposed to sunlight
Why Choose Hongruntong Marine?
Flexible Manufacturing
Customized UV-protected hoses for different climates and outdoor usage conditions.
Proven Reputation
Reliable supplier for juice distributors and marine catering companies worldwide.
Focus on Innovation
Development of advanced outer covers for UV and weather protection to extend hose life.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long does delivery take?
A: 5-10 days for stock, 15-20 days for non-stock orders.
3. Q: Do you provide samples?
A: Yes, samples are free but customer covers freight.
4. Q: What are your payment terms?
A: T/T and L/C, depending on order size.
