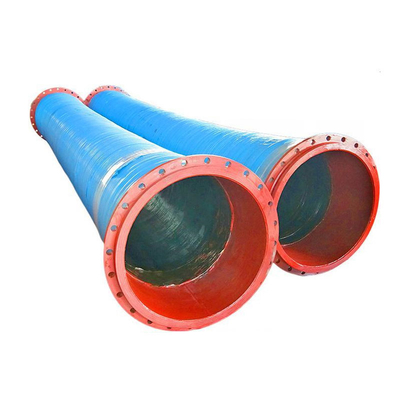

Water Discharge Hose Heavy Duty Rubber Leak Proof And Reliable Strength
| MOQ: | 1 |
| Price: | $55-$965 |
| Standard Packaging: | Wooden Pallets, Wooden Box |
| Delivery Period: | 5-7 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 5789 Pcs Per Month |
heavy duty rubber discharge hose
,leak proof water discharge hose
,reliable strength discharge hose pipe
Water Discharge Hose Heavy Duty Rubber Leak Proof And Reliable Strength
Description
The ideal economical and lightweight solution for general water transfer, irrigation, dewatering, and construction site drainage. Designed for easy handling and maneuverability, this hose reduces worker fatigue and offers reliable, cost-effective performance for a wide range of low-pressure applications where extreme durability is not the primary concern.
( Case: A large agricultural co-op in Thailand needed an affordable and easy-to-handle solution for irrigating hundreds of small plots. Our lightweight PVC hoses were easy for workers to move and reposition daily, and their low cost allowed the co-op to outfit all their operations without exceeding their budget. )
Specifications
| Name | Discharge Hose Pipe |
| Nominal Bores | From 150mm (6”) to 1200mm (47”) |
| Length | Up to 11.8 Metres (38ft) |
| Working Pressure | Up to 20 bar |
| Safety Factor | 4:1 |
| Flange Options | Fixed, Swivel, Double-Flange and Built-in-Nipple Designs |
| Features | Heavy-Duty Robust Construction Designed to Handle Large Dredged Particles Hoop-Ring or Spring-Wire-Helix Construction for Flexibility or Full Vacuum During Service Tailor-Made Designs, Including Self-Floater, Suction Dredge Hose and Flexible Discharge Hoses Suitable for Slurries Containing Rock, Shell and Coral |
| Model | I.D. | W.P. | B.P. | Min Bending Radius | Wear Layer Thickness |
Length | |
| inch | mm | bar | bar | mm | mm | m | |
| HM-DHP150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DHP650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DHP700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 11.8 |
| HM-DHP1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
| HM-DHP1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
Product Features
Extremely Lightweight Flexible
Manufactured from high-quality PVC material, this hose is significantly lighter than rubber hoses, making it easy to coil, uncoil, and drag across fields or job sites, drastically improving operational speed.
Reinforced Construction
High-tensile polyester yarn braid reinforcement provides sufficient strength for typical water discharge pressures (e.g., up to 150 PSI), preventing bursting and elongating, ensuring dependable performance.
Weather UV Resistant
The PVC compound is treated with UV stabilizers to resist degradation from sunlight, preventing it from becoming brittle and cracking during extended outdoor use.
Smooth Interior for Efficient Flow
The smooth inner surface ensures efficient water flow with minimal friction loss, maximizing the output from your pump or water source.
Applications
Agriculture Irrigation
Crop irrigation, drainage of fields, and water transfer for farming and gardening applications.
Construction Site Dewatering
Pumping clean water from excavations, trenches, and foundations during the construction process.
Municipal Landscape Use
Drainage for parks, sports fields, temporary water diversion for events, and general-purpose water movement by municipal crews.
Why Choose Hongruntong Marine?
Cost Effective Sourcing
As a factory, we produce large volumes of high-quality PVC hose at a highly competitive price, providing exceptional value for budget-conscious projects.
Rapid Delivery Large Stock Availability
We almost always have large stocks of common diameters (1" to 4") in ready-to-ship lengths, ensuring you get the hose you need without long wait times.
Custom Printing and Branding
We can easily add custom printing (company name, product specifications) to the hose cover for branding and inventory identification purposes.
Reliable Quality for the Application
While not for heavy abrasion or oil, our PVC hoses are engineered to be the best-in-class for general water duty, offering a perfect balance of performance, weight, and price.
FAQ
1. Q: Is the hose drinking water safe?
A: Our standard PVC hose is not rated for potable water. For drinking water applications, we offer a separate hose made with FDA-approved materials and a different compound that doesn't impart taste or odor.
2. Q: What is the temperature range?
A: This PVC hose is designed for water temperatures between 0°C (32°F) and 60°C (140°F). It can become stiff in very cold weather and soften in high heat.
3. Q: Can it handle mild chemicals?
A: It has fair resistance to mild acids and alkalis but is not recommended for strong solvents, oils, or fuels, which will degrade the PVC material.
4. Q: What is the temperature range?
A: Temperature tolerance depends on the tube material. Standard rubber hoses typically handle -20°C to +80°C (-4°F to +176°F). Specialized hoses (e.g., EPDM for steam) can handle up to +150°C (+302°F) intermittently. Always confirm based on your media's temperature.
