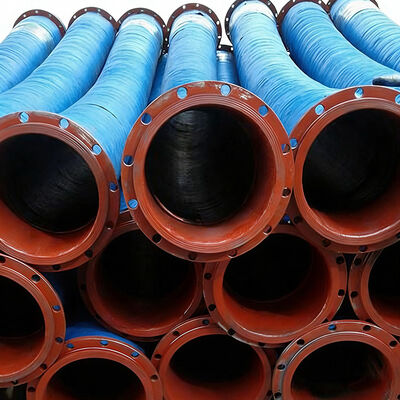

Heavy Duty Mud Hose With Steel Armoring And High Pressure Strength
| MOQ: | 1 |
| Price: | USD886 to USD895 Per Piece |
| Standard Packaging: | Wooden Pallets, Wooden Box |
| Delivery Period: | 5-7 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 5928 Pcs Per Month |
Heavy Duty Mud Hose With Steel Armoring And High Pressure Strength
Description
The Armored Hose is engineered for marine operations requiring stable performance under continuous high-pressure conditions. It features a reinforced rubber body combined with a robust steel-armored structure that effectively controls deformation and maintains internal flow stability. High-quality synthetic rubber compounds are used for the inner and outer layers to ensure resistance to pressure fatigue, mechanical stress, and environmental exposure.
Designed with optimized reinforcement geometry, the hose minimizes radial expansion and axial movement during operation. This structural stability enhances system safety and reliability while extending service life. The Armored Hose provides dependable performance in demanding marine transfer systems where pressure control and durability are essential.
Case Study
An offshore construction contractor operating a 15,000-ton support barge required hoses capable of handling continuous high-pressure material transfer. Previously used hoses suffered from excessive expansion and connection loosening, leading to frequent shutdowns and safety concerns.
Hongruntong Marine supplied Armored Hoses with reinforced pressure layers and upgraded steel armor configuration. After installation, the hoses maintained dimensional stability under sustained pressure cycles. Over 14 months of operation, no pressure-related failures occurred, and connection integrity was fully maintained. The client confirmed improved operational reliability and reduced inspection frequency, and the same hose specification was adopted for subsequent projects.
Specifications
| Name | Armored Hose |
| Inner Liner | Natural Rubber In Various Thicknesses and Compounds |
| Reinforcement | Nylon Cord Fabric with Spring Steel Wire Helix |
| Outer Cover | Black Abrasion and Uv-Resistant Natural Rubber |
| Hose Length | Up to 12m |
| Pressure Rating | 5-40Bar |
| Temperature Rating | -40°C to +80°C |
| Safety Factor | 4:1 |
| Bend Radius | 8 to 10 Times Diameter (Standard) |
| End Fittings | Fixed Flanges, Swivel Flanges, Plain Cut, Cuffed, Swollen, Custom Fittings |
| Flange Types | D, E, F, ANSI 150, ANSI 300, Custom |
| Materials | Stainless Steel, Hot-Dipped Galvanised, Carbon Steel, Custom Paint |
| Nominal Bore Size | 500mm, 600mm,700mm,750mm,800mm, 850mm, 900mm1000mm,1100mm,1200mm |
| Hose Length | <= 40 m (Tolerance: ±2%) |
| Working Pressure | 2.5 MPa~ 4.0 MPa |
| Working Temperature | -40℃ to +80℃ |
| Tolerable Vacuum | -0.08 MPa |
| Hardness of Wear-resistant Rings | HB 350 ~ HB 500 |
Key Features
Pressure Stable Reinforcement Structure
The hose is constructed with multiple reinforcement layers designed to control radial expansion under high internal pressure. This ensures stable flow conditions and prevents excessive deformation that could compromise system performance.
Steel Armor for Structural Integrity
Integrated steel armor enhances the hose’s resistance to external compression and internal pressure forces. The armor works together with the rubber body to maintain overall shape and alignment during operation.
Fatigue Resistant Rubber Compounds
Specially formulated rubber materials resist fatigue caused by repeated pressure cycles. This reduces the risk of cracking, delamination, and loss of elasticity over long-term use.
Secure End Interface Design
End connections are engineered to withstand axial forces generated by internal pressure, reducing the risk of slippage, leakage, or connection failure.
Applications
High Pressure Marine Transfer Systems
Suitable for systems where continuous pressure stability is critical to operation.
Offshore Construction Material Handling
Supports reliable material transfer in offshore projects with demanding pressure requirements.
Marine Equipment Interconnection
Ideal for connecting pressurized systems while maintaining alignment and safety.
Why Choose Hongruntong Marine
Deep Understanding of Pressure Dynamics
Hongruntong Marine designs hoses based on real pressure behavior observed in marine operations, ensuring practical and reliable solutions.
Advanced Structural Design Capability
Engineers optimize reinforcement layout and armor configuration to achieve balanced pressure resistance and flexibility.
Consistent Manufacturing Precision
Strict process control ensures uniform reinforcement placement and consistent pressure performance across every hose.
Comprehensive Technical Support
From design consultation to installation guidance, Hongruntong Marine provides full technical assistance throughout the project lifecycle.
FAQ
1. What pressure range can this Armored Hose handle?
The working pressure range depends on hose diameter and reinforcement design and can be customized to meet specific requirements.
2. How does the hose control expansion under pressure?
The combination of reinforced layers and steel armor limits radial expansion and maintains dimensional stability.
3. Are pressure tests conducted before delivery?
Yes, each hose undergoes pressure testing to verify performance against design specifications.
4. Can the hose be used for continuous operation?
It is designed for long-term continuous use under stable pressure conditions with proper maintenance.
5. What factors affect pressure performance?
Operating pressure, temperature, bending radius, and installation method all influence pressure stability.
