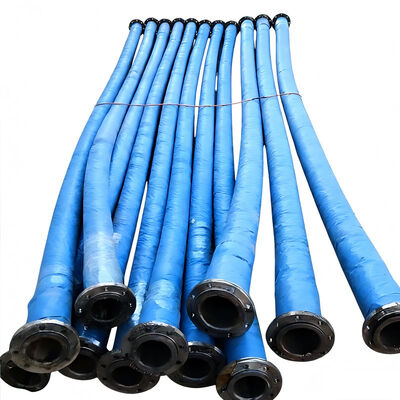

Wear Resistant Slurry Suction Hose With Armored Design And Flexible Structure
| MOQ: | 1 |
| Price: | USD89 to USD588 Per Piece |
| Standard Packaging: | Wooden Pallets, Wooden Box |
| Delivery Period: | 5-7 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 2655 Pcs Per Month |
Wear Resistant Slurry Suction Hose With Armored Design And Flexible Structure
Description
The Armored Hose is a heavy-duty flexible hose engineered for marine operations involving highly abrasive materials and continuous wear conditions. It is designed with a thick, wear-resistant inner lining and reinforced by a robust steel-armored structure, providing outstanding resistance against internal abrasion and external mechanical damage. This construction significantly extends service life even under severe operating environments.
The inner tube is manufactured from premium abrasion-resistant rubber compounds developed to withstand constant contact with sand, gravel, slurry, and other solid particles. Multiple reinforcement layers ensure structural strength, while the steel armor protects the hose from crushing, dragging, and impact during operation. The hose maintains stable performance over extended service cycles, reducing downtime and replacement frequency.
By focusing on durability and wear control, the Armored Hose delivers long-term economic value. It minimizes operational interruptions and lowers overall lifecycle costs, making it a reliable solution for projects where hose wear is a major operational concern.
Case Study
A dredging contractor operating a cutter suction dredger of approximately 18,000 DWT faced persistent problems with rapid hose wear due to high concentrations of sand and coarse sediment. Conventional rubber hoses experienced severe internal erosion, requiring replacement every 6 to 8 months and resulting in frequent downtime and increased operating costs.
Hongruntong Marine supplied Armored Hoses with an upgraded abrasion-resistant inner lining and reinforced steel armor optimized for continuous dragging and impact exposure. After more than 20 months of uninterrupted operation, inspections showed minimal internal wear and no structural damage. The client reported a significant reduction in spare hose inventory and maintenance labor, along with improved project scheduling reliability. Based on these results, the hose specification was adopted as a standard solution for future dredging projects.
Specifications
| Name | Armored Hose |
| Inner Liner | Natural Rubber In Various Thicknesses and Compounds |
| Reinforcement | Nylon Cord Fabric with Spring Steel Wire Helix |
| Outer Cover | Black Abrasion and Uv-Resistant Natural Rubber |
| Hose Length | Up to 12m |
| Pressure Rating | 5-40Bar |
| Temperature Rating | -40°C to +80°C |
| Safety Factor | 4:1 |
| Bend Radius | 8 to 10 Times Diameter (Standard) |
| End Fittings | Fixed Flanges, Swivel Flanges, Plain Cut, Cuffed, Swollen, Custom Fittings |
| Flange Types | D, E, F, ANSI 150, ANSI 300, Custom |
| Materials | Stainless Steel, Hot-Dipped Galvanised, Carbon Steel, Custom Paint |
| Nominal Bore Size | 500mm, 600mm,700mm,750mm,800mm, 850mm, 900mm1000mm,1100mm,1200mm |
| Hose Length | <= 40 m (Tolerance: ±2%) |
| Working Pressure | 2.5 MPa~ 4.0 MPa |
| Working Temperature | -40℃ to +80℃ |
| Tolerable Vacuum | -0.08 MPa |
| Hardness of Wear-resistant Rings | HB 350 ~ HB 500 |
Key Features
Ultra Wear Resistant Inner Rubber Lining
The inner tube is produced using high-performance rubber compounds with exceptional abrasion resistance. This material significantly slows down wear caused by solid particles, extending service life even under high flow velocity and heavy solid content conditions.
Thick Wall Construction for Extended Durability
The hose features a reinforced wall thickness designed to absorb continuous abrasion without compromising structural integrity. This added material margin allows the hose to maintain performance over prolonged operational cycles.
Steel Armor for External Wear and Impact Protection
The integrated steel armor protects the hose from external abrasion, crushing, and impact caused by dragging over rough surfaces or contact with equipment. This external protection is essential for maintaining hose integrity in harsh marine environments.
Reduced Replacement Frequency and Downtime
By combining internal wear resistance and external protection, the hose significantly reduces failure rates and replacement intervals, improving overall operational efficiency.
Applications
High Abrasion Dredging and Slurry Transfer Systems
Ideal for transferring sand, gravel, slurry, and other abrasive mixtures where hose wear is a critical issue.
Marine Construction Material Handling
Supports long-duration material transfer operations with high solid content and continuous wear exposure.
Port and Channel Maintenance Projects
Provides reliable performance in maintenance operations where durability and long service life are essential.
Why Choose Hongruntong Marine
Expertise in Abrasion Resistant Hose Design
Hongruntong Marine has extensive experience designing hoses specifically for abrasive marine materials, enabling precise selection of rubber compounds and structural configurations.
Proven Long-Term Field Performance
Products are developed based on real operational feedback from dredging and marine construction projects, ensuring practical durability rather than theoretical performance.
Optimized Lifecycle Cost Efficiency
By extending service life and reducing replacement frequency, Hongruntong Marine Armored Hoses help customers lower total ownership costs and improve project profitability.
Reliable Quality and Consistent Manufacturing
Strict quality control and standardized manufacturing processes ensure consistent abrasion resistance and performance across every hose delivered.
FAQ
1. How does this hose compare to standard rubber hoses in terms of wear?
The abrasion-resistant inner lining provides significantly longer service life compared to conventional rubber hoses under similar conditions.
2. Can the hose handle high solid concentration materials?
Yes, it is designed to perform reliably with materials containing high levels of sand, gravel, and solid particles.
3. Is the steel armor necessary for abrasion resistance?
The armor protects against external wear and impact, which is critical in operations involving dragging or contact with hard surfaces.
4. How often should wear inspections be performed?
Inspection frequency depends on operating intensity, but periodic internal and external checks are recommended for optimal performance.
5. Does increased durability affect flexibility?
The hose is engineered to balance durability and flexibility, maintaining acceptable bending performance for marine operations.
